Digital Photo Finish
Clear images for unambiguous results
Microgate offers solutions and consultancy for digital photo-finish systems thanks to its partnership with Lynx System, a US-based company with over 30 years’ experience in sports timing and digital imaging. Photo-finish and video cameras are used at athletics competitions, horse races, motor sport events, cycling events, canoeing competitions, as well as in specialised applications such as falcon and camel races in the Middle East.
GO TO WEBSITE

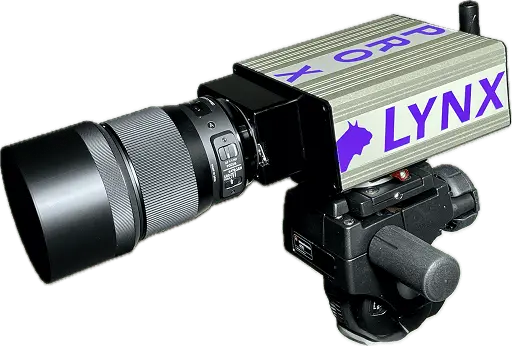

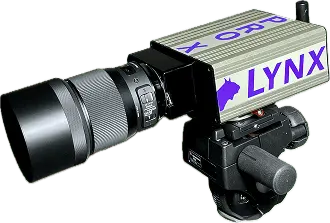

Vision Pro X
Latest-generation photo finish camera. It acquires up to 40,000 lines/s with 5120-pixel vertical resolution and a data flow of up to 200 Mp/s. The LuxBoost 16X sensor delivers high performance even in challenging light conditions.

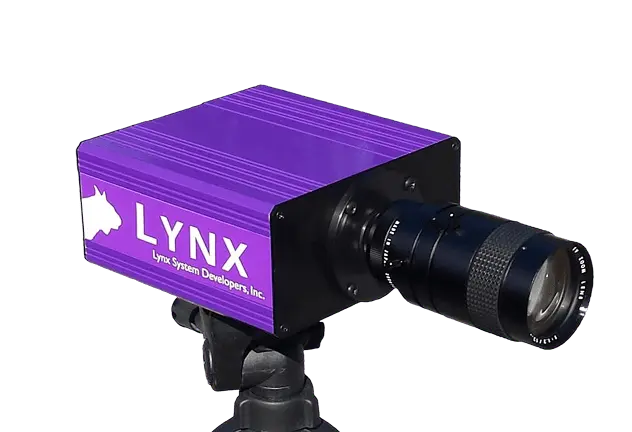

Vision Pro
High-performance photo finish camera with acquisition speed up to 20,000 lines/s and 2048-pixel vertical resolution. The LuxBoost 8X sensor allows use in very low light at non-high speeds. Automatic lens with software control of IRIS, Focus and Zoom.

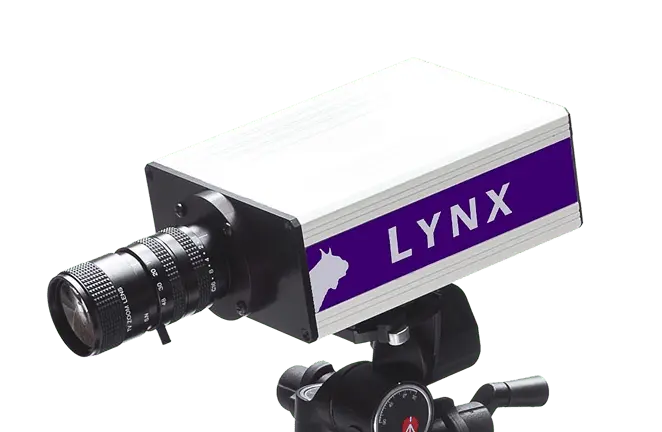

Vision
Entry-level camera for sports where very high acquisition speed is not required. It reaches up to 2,000 lines/s, with 1280-pixel resolution and LuxBoost 4X. Suitable for track and road athletics, cross-country skiing and similar applications.

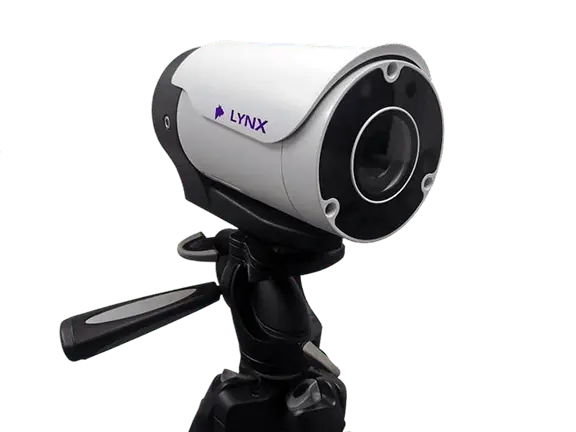

IdentiLynx HRS
Video camera acquiring up to 3840 × 2160 at 10 fps or 1280 × 720 at 60 fps. Focus and Zoom are software adjustable. It can work with Vision-series cameras, in stand-alone mode or for jump take-off control with VeryLynx.

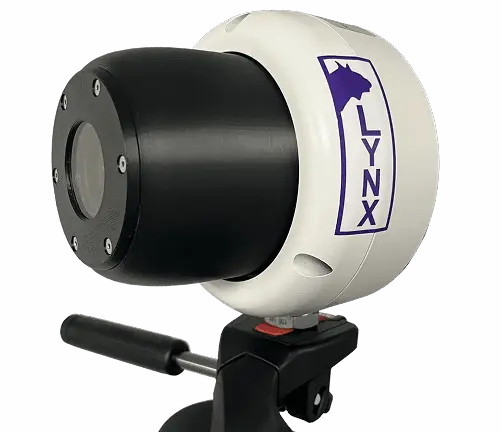

IdentiLynx SR-2
Full-frame Ethernet digital video camera integrated with EtherLynx photo finish cameras. It provides time-synchronized front video with the photo finish image, making athlete identification by bib number or team easier. It acquires up to 1280 × 960 pixels at 30 fps.
