HiSmart

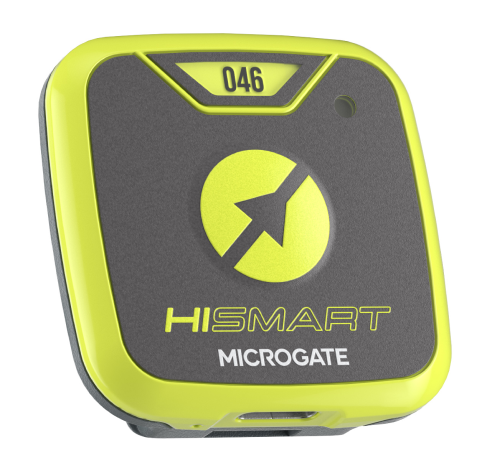

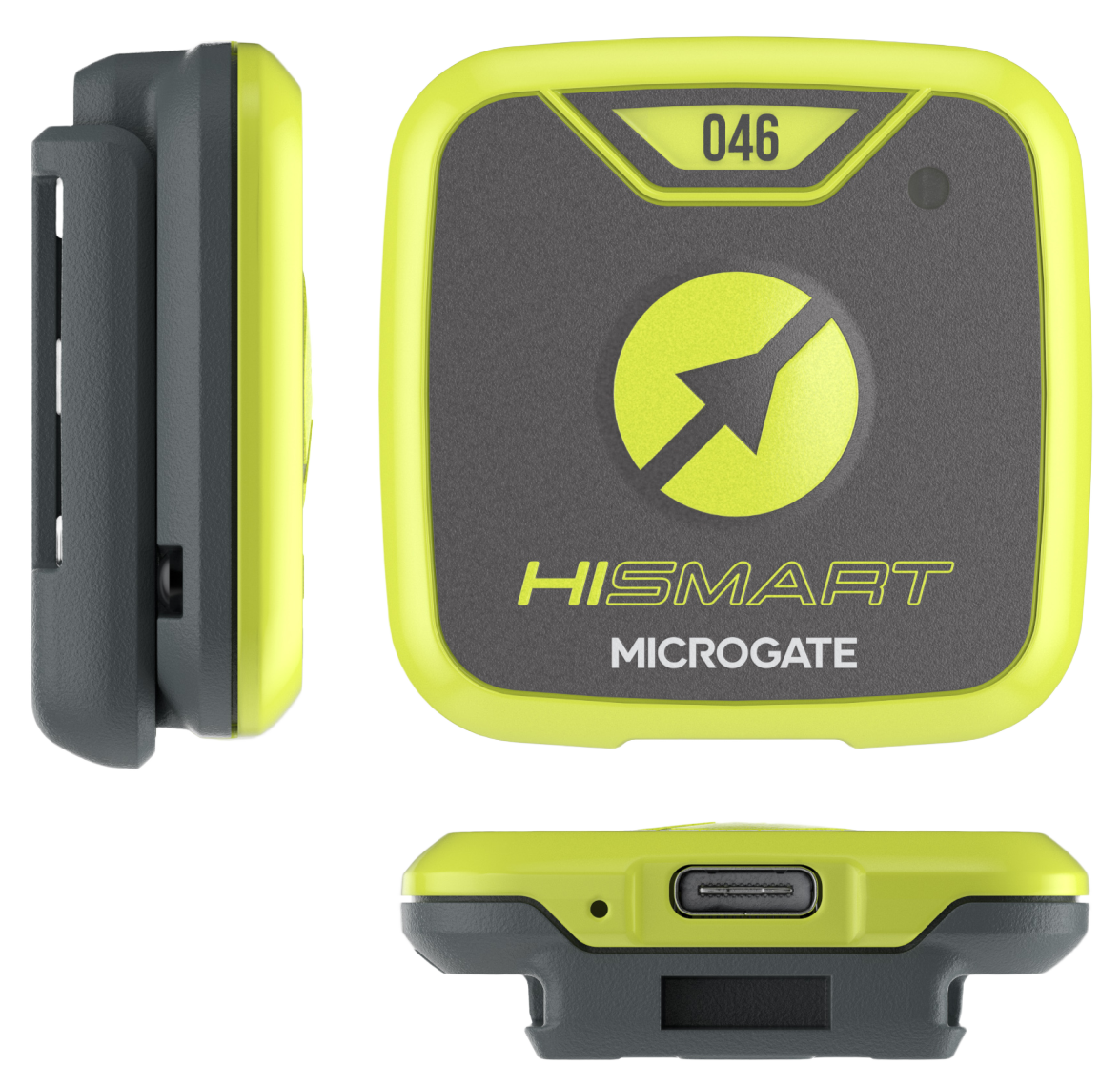

Smart sensor for athlete identification
HiSmart is the Microgate sensor for automatic identification of athletes along the course. Ultralight and wireless, it uses the Bluetooth LE Fast Authentication protocol to transmit its own ID to Microgate devices, enabling reliable recognition of passages only by competitors who are actually in the race.
Technical Data Sheet
Weight
17 g
Dimensions
42 x 42 x 14 mm
Operating temperature
–20º/+60ºC
Power supply
External power supply USB 5VDC 0.2A; Internal Li-Po battery
Battery recharging
Built-in smart recharging device - Charging via USB C - Qi wireless charging (WPC v1.2)
Uptime
> 8 hours
Power ON/OFF
From the keyboard, with Microgate key
Keyboard
1-key keyboard, covered with a protective waterproof membrane
Processing unit
Architecture based on a processor - 64 MHz ARM Cortex-M4 32-bit
Power supply Device USB
1 x USB C port - Connection for external power supply unit - USB 2.0 connection to "Host" devices
BT
1 x Integrated WIFI/BT + Antenna module - WiFi: 802.11 a/b/g/n - Bluetooth: 4.2 + BLE
Inertial Sensor
1 x Integrated 9-axis inertial sensor - Accelerometer resolution: ±2G - ±16G (XYZ) - Gyroscope resolution: ±125°/s - ±2000°/s (XYZ) - Magnetometer resolution: ±1150μT (XY), ±2500μT (Z) 22
Why choose it
- Automatic identification: Each athlete is assigned a unique HiSmart code, allowing immediate identification at every passage without the risk of errors.
- Elimination of false impulses: The system records only the passages of competitors who are actually in the race. HiLink and HiSens photocells ignore external impulses, ensuring reliable and clear data.
When to use it
HiSmart is ideal for all disciplines in which athletes pass the detection points individually, such as training sessions or competitions in alpine skiing, motorsport (rally or regularity events), cycling time trials, and time trials in general.
