HiLink
The new generation of GPS radio system
HiLink is not simply an evolution of the Microgate radio transmission system, which receives and transmits on 69 frequencies. It is a device equipped with GPS and a temperature-compensated time base, making it a true timer and synchronizer. HiLink is the heart of a distributed timing system.
Technical Data Sheet
Fields of application
Downloads
Uncompromising radio precision

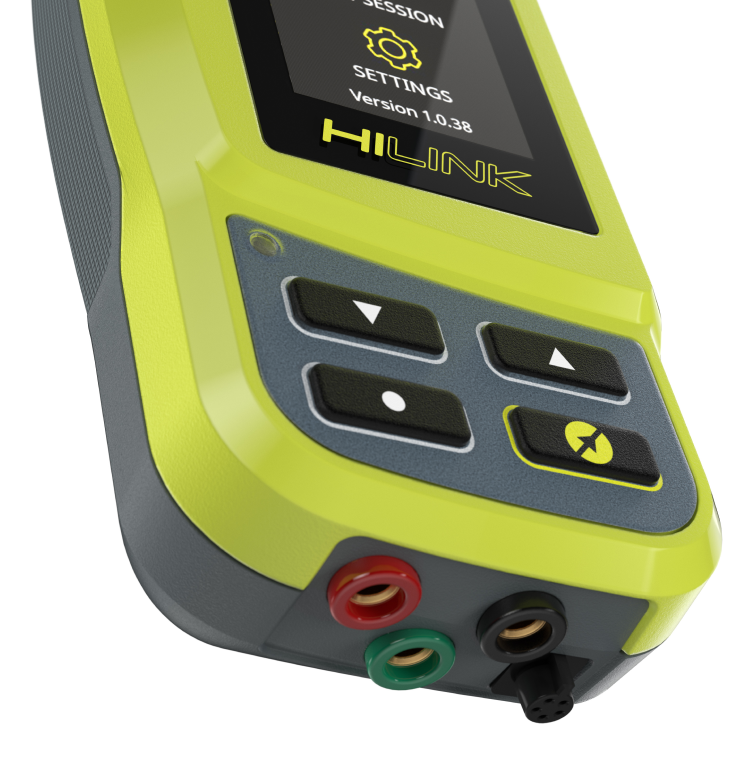

HiLink has a compact size, an extended temperature range and a touch display with hardware designed for professional use. The 433 MHz radio module supports 69 selectable channels and two power levels, 10 mW and 500 mW, ensuring reliability even over long distances.
This device also integrates a time base with a temperature-compensated oscillator with ±1 ppm accuracy, which can be synchronized via GPS to enable true time-of-day timing.
Simple and immediate control

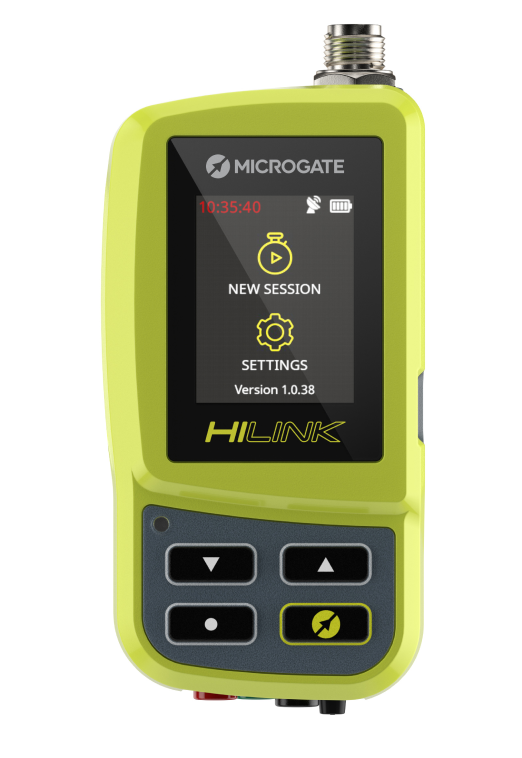

The HiLink user interface is designed to be clear and immediate, both for training use and for timing. The 2” colour touch display with an auto-adaptive brightness sensor and physical buttons allow quick operation even in the field. Bluetooth Low Energy and integration with Microgate devices also enable flexible configuration and use both as a synchronizer and as a central system hub.
Key strengths
Integrated radio transceiver
Combines transmission (EncRadio) and reception (DecRadio) in a single device.
Reliable communication
Radio 433 MHz con 69 canali e potenze selezionabili 10 mW / 500 mW.
High-precision time base with GPS
Temperature-compensated oscillator with ±1 ppm accuracy and GPS synchronization.

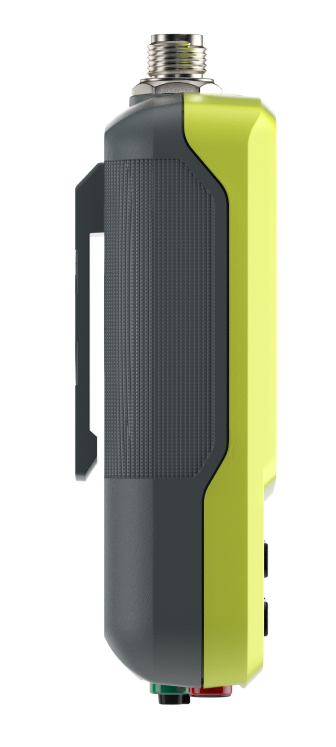

Robust and portable
Compact design, low weight and operating range from -20 °C to +60 °C.
Long battery life
More than 8 hours of continuous operation under normal conditions, extendable by connecting a USB-C power bank.
Extended connectivity
Bluetooth Low Energy for configuration and communication with timers, USB interface for connecting to a PC using different protocols.
Extended compatibility with other systems
The ability to transmit impulses makes HiLink an ideal system for wireless timing with timers from any manufacturer.
Professional touch display
2” colour TFT-LCD screen with auto-adaptive brightness.
Simple and immediate interface
Clear menus and physical buttons for quick use even in the field.
Everywhere. Right away. Smart.
HITIMING App - Share your data in real time
HITIMING is the new Microgate app that allows timing session data to be shared in real time with coaches, athletes and collaborators by uploading names and start lists. Start the session, share the identification code with users, and the data will be visible live on their devices. At the end of the session, you can export a ranking as a PDF or Excel file for even more detailed analysis.
